Vacuum Nozzle Selection Guide for Workshop Tools

A dust extractor can have plenty of suction and still leave a mess if the nozzle is wrong. A loose connection leaks air, a narrow opening clogs quickly, and an oversized fitting can fall off halfway through a cut. This vacuum nozzle selection guide focuses on the details that matter in a workshop: fitting size, connection type, hose compatibility and the job being done.

The right choice is rarely just a case of buying the nozzle labelled nearest to your tool brand. Measure the parts you already have, identify how they need to join, then choose a fitting that keeps the airflow path as direct as possible.

Start with the connection, not the tool name

Manufacturers use different dust-port sizes, even within the same range of tools. Tool descriptions can also be misleading: a stated size may refer to the outside of a port, the inside of a hose, or the nominal size of a fitting rather than the dimension you need to match.

Before ordering anything, establish which part is receiving the new nozzle or adaptor. Is it the dust outlet on the machine, the end of the hose, or another accessory? Then measure the relevant diameter with callipers if possible. A steel rule is better than guessing, but callipers will avoid the common problem of confusing a 35 mm fitting with a 38 mm one.

For a circular port, take two measurements. Measure the outside diameter of the port if a fitting will go over it. Measure the inside diameter if a fitting needs to push into it. If the port is tapered, measure near the end where the connection will sit and note the depth available. A connection that feels secure for 5 mm may not stay put during normal use.

Threaded fittings, bayonet fittings and proprietary locking systems need an additional check. Diameter alone does not confirm compatibility. The shape, locking tabs and direction of engagement all matter.

Male and female vacuum fittings

The terms male and female are simple, but they are often applied to the wrong component when dust extraction parts are selected in a hurry.

A male adaptor has an outside diameter designed to fit inside another opening. Use one when your machine dust outlet, hose end or accessory has an opening that accepts an inserted fitting. A female adaptor has an inside diameter designed to fit over the outside of a dust outlet or hose cuff.

Think about the physical overlap, not the label on the tool. If the machine has a 35 mm outside diameter spigot, you need a female connection with a suitable internal size. If the machine has a 35 mm internal opening, you need a male connection with a suitable external size.

This matters because a nominally similar adaptor can be completely wrong in practice. A male-to-male pairing gives two surfaces with nowhere to engage. A female-to-female pairing leaves the same problem. Even when parts can be forced together, the result may be a poor seal that reduces pickup at the tool.

Allow for taper, ribs and flexible cuffs

Not every dust port is a smooth, straight tube. Some are tapered to accept a range of hose ends. Others have ribs, moulded stops or a flexible rubber cuff. Measure the area where the fitting will actually grip, rather than the widest section nearby.

A tapered connection can be useful where one adaptor needs to serve more than one tool, but it is a compromise. It may need more force to fit and can loosen under hose movement. For a bench tool that stays connected, a close, straight fit is usually preferable. For a handheld tool that is moved around frequently, a locking connection or retaining method is often worth the extra effort.

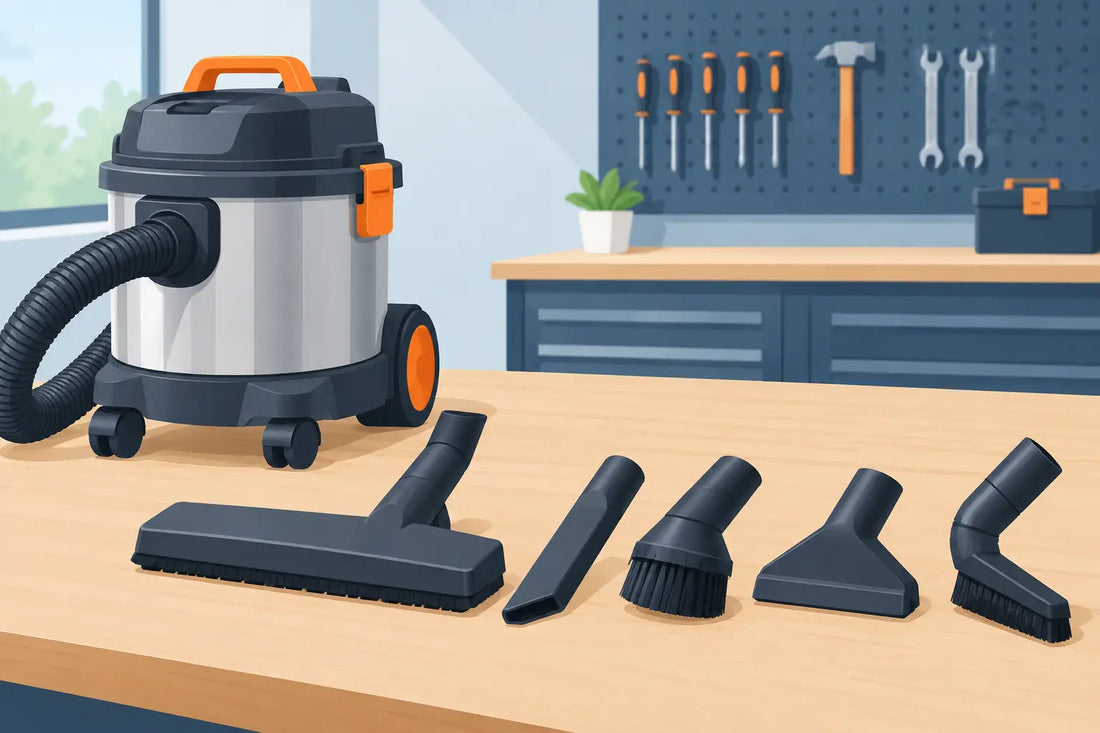

Match the nozzle to the extraction task

Connection size is only half the decision. The opening at the working end determines how well the extractor collects debris and whether it remains usable on the job.

A narrow crevice nozzle concentrates airflow and reaches into corners, machine tracks and around fixed equipment. It is useful for clean-up, but it is not the best option for collecting a high volume of planer shavings or chips. Those materials can bridge across the narrow entrance and block the hose.

A wider utility nozzle covers more surface area on benches, floors and larger machine housings. It is generally the practical choice for workshop clean-up, especially when collecting sawdust, offcuts and loose debris. Wider is not automatically better, however. A very broad opening spreads the airflow over a larger area and may have less pull on stubborn dust.

Brush nozzles are suited to surfaces that can be marked or scratched, including finished work, control panels, vents and delicate equipment. The bristles help disturb settled dust while keeping a hard plastic edge away from the surface. They are less suitable for wet, sticky or sharp debris, which can collect in the brush and make cleaning slower.

For power tools, the best nozzle is normally no separate cleaning nozzle at all. It is a properly matched tool adaptor that connects the extractor hose directly to the machine dust port. Capturing dust at source is more effective than clearing it from the floor later, particularly with fine sanding dust.

Keep the airflow path sensible

Every reduction, sharp step and unnecessary extension adds resistance. That does not mean adaptors should be avoided. They solve real compatibility problems. It means the layout should use only the parts needed to create a secure working connection.

Where a hose is stepped down to suit a smaller tool outlet, keep the reduced section short. This is especially relevant for fine dust from sanding, plasterboard work or routing, where restrictions can encourage material to build up. With larger chips, a sudden reduction can become the point where a blockage starts.

Hose length creates a similar trade-off. A longer hose gives better reach and reduces the need to move the extractor, but it can lose performance and catch on benches or workpieces. An extension is useful when the original hose is too short for the working area. For frequent use on a single machine, a more direct hose route is usually neater and more reliable.

Splitters also need a realistic approach. A dual or triple splitter can make an extractor easier to share between machines or work positions, but suction will not be equally strong through every open branch. For best results, use only one active branch at a time or fit closures to the unused outlets. A splitter is a convenience tool, not a way to run several high-dust machines from one small extractor at full performance.

Consider locking systems and standard hose sizes

A push-fit adaptor is quick and widely useful, but it may not be the right choice where the hose is pulled, twisted or repeatedly removed. A positive locking system helps prevent accidental disconnection and makes it easier to move between compatible tools without tape, improvised sleeves or constant refitting.

DeWalt AirLock-compatible fittings are an example of this approach. They are designed to give a repeatable tool-to-hose connection rather than relying only on friction. If your extractor setup includes an AirLock-style hose end, choose an adaptor that preserves that connection at the hose side while matching the actual size and gender of the machine port at the other end.

Many workshop vacuum systems use spiral hose around 38 mm outside diameter and 32 mm inside diameter. Those figures describe the hose itself, not necessarily every cuff or tool connection attached to it. Check the rigid end fitting before assuming a standard hose will accept a particular adaptor.

This is also where an extender can be more useful than replacing a complete hose. If the existing hose is sound and uses a standard size, an appropriate hose-to-hose connector can add reach while keeping the original fittings in service. Check that the join is secure enough for the way the hose will be handled. A connection that works under a bench may separate when dragged around a workshop.

A practical check before you commit

Make the selection in this order: identify the component being joined, measure its inside or outside diameter, choose male or female engagement, then consider the nozzle shape or adaptor function. Finally, check whether the connection needs a proprietary lock, a straight push fit, an extension or a splitter.

Avoid choosing purely by the diameter printed on an old accessory. Wear, taper and product naming conventions can all make that figure unreliable. If you are between sizes, a measured fit with a suitable adaptor is better than forcing a tight part or accepting a loose one.

Once fitted, test the connection with the extractor running. Move the hose through the range of motion it will see during work, listen for air leaks and check that the fitting does not creep off the port. A few minutes spent checking the setup before a long sanding or cutting session is usually enough to prevent a workshop full of dust later.
