Best Dust Hose Splitters for Workshop Extraction

A splitter looks like a small fitting, but it can decide whether dust extraction is convenient enough to use on every cut. The best dust hose splitters match the actual hose and tool ports in your workshop, keep restrictions to a minimum, and make switching between machines less of a nuisance. A badly chosen one can leave you with loose connections, poor pickup and a hose layout that catches on everything.

For most workshops, the right choice is not the splitter with the most outlets. It is the one that solves a specific routing problem without asking one vacuum to do more than it can.

What a dust hose splitter is for

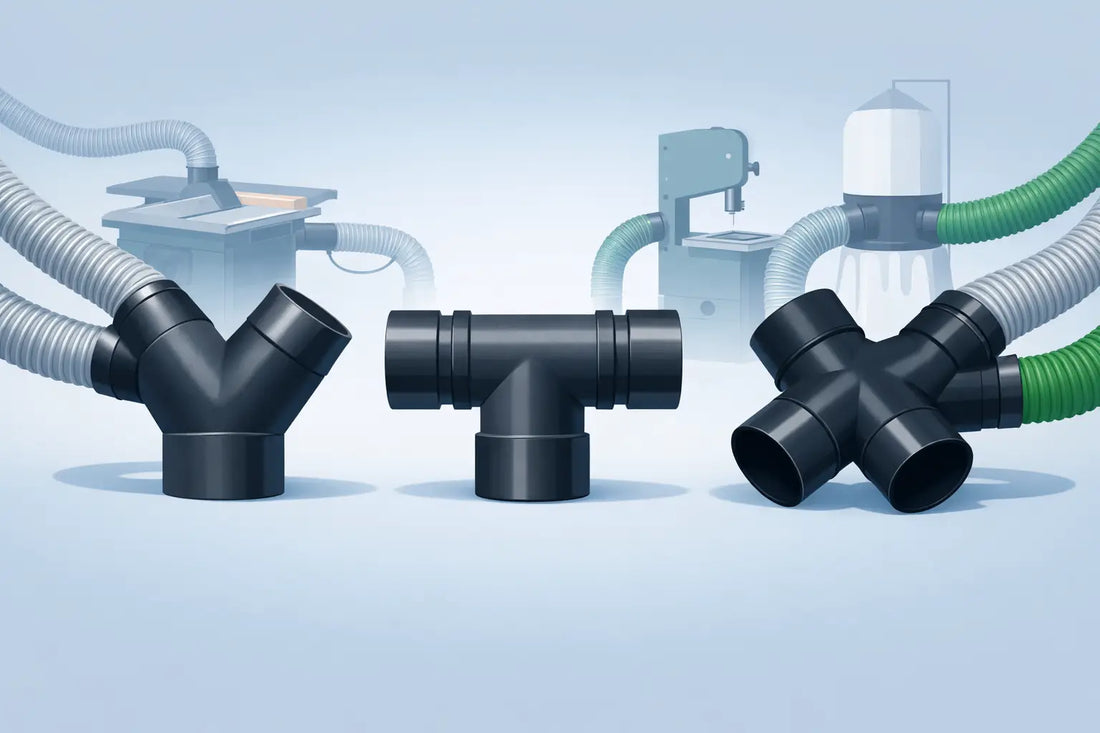

A dust hose splitter divides one extraction hose into two or more branches. The common arrangements are a dual Y splitter and a triple splitter. They are useful where a vacuum needs to reach neighbouring tools, where a hose needs extending, or where a connected tool needs a second pickup point.

The key distinction is between access and simultaneous extraction. A dual splitter can make it easier to connect two machines, but opening both branches at once divides the available airflow. With a typical workshop vacuum, that often means neither tool receives enough air speed for reliable chip and fine-dust collection.

For one-tool-at-a-time use, a splitter is usually a practical way to reduce hose swapping. For simultaneous use, such as a machine port plus an overhead guard, it can work well if the vacuum has sufficient airflow and both pickup points are reasonably close and well sealed. It depends on the tool, the diameter of each branch and how demanding the waste is. Planer shavings and mitre saw dust are less forgiving than light sanding dust.

Choosing the best dust hose splitters for your setup

Start with dimensions, not with the number of outlets. Dust extraction fittings are often described by outside diameter (OD) and inside diameter (ID), and confusing the two is an easy way to order a part that almost fits.

A male adaptor or connection fits inside a machine dust port or hose. A female connection fits over the outside of a port. Measure the part that will receive the fitting, ideally with callipers. If callipers are not available, measure carefully across the opening and allow for any taper, ribs or locking lugs. A nominal size on a tool is useful, but the real opening is what matters.

Many general-purpose vacuum systems use spiral hose around 38 mm OD and 32 mm ID. This is a useful reference point, not a guarantee that every hose, cuff and machine outlet is identical. Some hose ends are tapered, while others use moulded cuffs that add several millimetres to the outside diameter. Check both ends of the proposed connection before choosing a splitter.

Dual splitters suit most bench layouts

A dual splitter is the sensible starting point for a compact workshop. It can create a branch for two nearby machines, extend a run to a bench tool, or provide separate pickups for a single machine. A Y-shaped body is generally preferable to a sharp T junction because the gentler path causes less turbulence as air changes direction.

If the aim is to leave two machines connected, fit a blanking cap or a blast gate to the unused branch. An open branch is effectively an air leak. The vacuum will pull air from the easiest path, not necessarily from the tool producing the dust.

Triple splitters are useful, but need discipline

A triple splitter is useful for a work area with several short hose runs or for a machine with multiple collection points. It is not a way to turn a single hose vacuum into a full fixed extraction system. Three open outlets produce a substantial airflow drop, especially through narrow hose.

Use a triple arrangement where you can isolate unused branches. This keeps the layout flexible without wasting suction. It also makes fault-finding simpler: if extraction becomes weak, close every branch except the one in use and check for a blocked hose, a poor seal or a full filter.

Hose extension and splitting are different jobs

Adding length to a hose is sometimes necessary, but every extra metre adds drag and makes a small vacuum work harder. A hose extender is the cleaner choice when the only problem is reach. Use a splitter only when you need a branch.

Where both are required, keep the main hose run as short and direct as possible, then place the splitter close to the tools. A long main run followed by long branch hoses creates more resistance than most portable vacuums can comfortably overcome.

Airflow matters more than outlet count

Dust collection relies on moving enough air at enough speed to carry debris into the hose. When a hose divides, the available air volume is shared. If branch diameter reduces, resistance rises further. That is why a splitter that physically connects can still perform poorly in use.

There is no single rule for every tool. Random-orbit sanders often tolerate a narrower path because they produce fine dust in smaller quantities. Routers, track saws and mitre saws can benefit from good sealing and short runs, but their extraction performance varies by shroud design. Thicknessers and larger chip-producing machines normally need a dedicated larger-bore extraction system rather than a small vacuum hose split three ways.

Before committing to a permanent arrangement, test it during real work. Cut, sand or rout the material you normally use and inspect the machine, bench and filter afterwards. If dust builds up at the source, first close unused branches and check the hose route. Replacing a splitter with a larger, smoother fitting may help, but no adaptor can compensate for an undersized vacuum or a badly designed tool port.

AirLock compatibility and tool-side connections

DeWalt AirLock connections are useful because they give a positive, repeatable join between hose and tool. They reduce the chance of a hose falling off while moving around the bench, and they make tool changes quicker than forcing a plain cuff over a tapered outlet.

An AirLock-compatible splitter or hose extension can be a practical bridge between an AirLock-equipped tool and standard spiral vacuum hose. This is particularly useful when a workshop has a mix of tool brands or a vacuum hose with a standard 38 mm OD and 32 mm ID format. The connection at each end still matters: an AirLock tool-side connection does not automatically mean the vacuum-side hose cuff is the same size.

Maker Fixer offers AirLock-compatible single, dual and triple hose connectors designed around this common spiral hose format. Select the connection style according to whether it needs to fit inside or outside the existing port, then confirm the measured diameter before ordering.

Look for a layout that stays usable

The best fitting is not always the shortest one. A compact splitter may place the branches at awkward angles, putting strain on a hose or causing it to kink when the tool moves. Give the hose enough room to curve naturally. On a mobile vacuum, route the branch so it does not pull against the machine port when the vacuum is wheeled around.

Also consider where the weight sits. A heavy hose hanging from a small plastic dust outlet can loosen the connection or crack an older port. Supporting the hose from a bench edge, hook or simple overhead bungee can take load off the tool and improve handling.

Keep the system clean. Fine sanding dust can collect in reducers, narrow elbows and hose cuffs, while larger chips tend to lodge at sudden changes in diameter. If performance falls off gradually, inspect the splitter before assuming the vacuum motor is at fault. A clear fitting and a clean filter often restore more pickup than another adaptor.

A well-chosen splitter should make extraction easier to use, not more complicated to manage. Measure the ports, keep unused branches sealed, and let the vacuum serve one demanding task properly rather than several poorly. That small bit of planning keeps the bench cleaner and leaves more time for the work itself.
