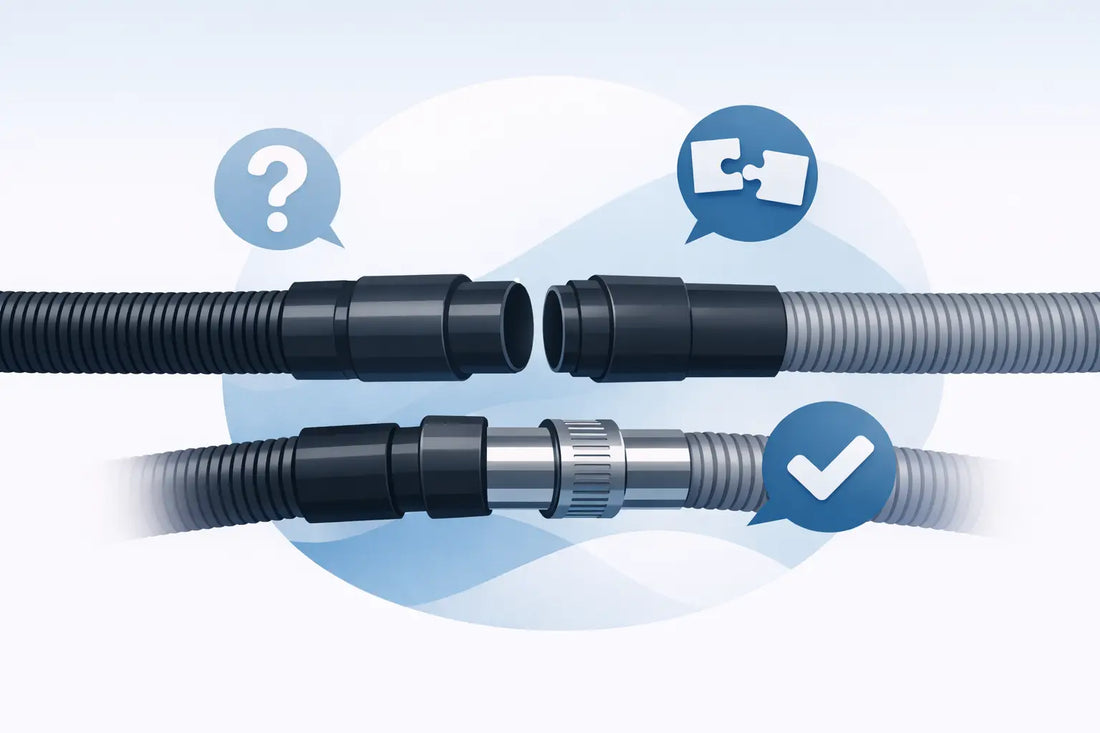

Can Vacuum Hoses Be Joined? Choose the Right Fit

A dust hose that is 300 mm too short is enough to turn a useful extraction setup into a nuisance. The direct answer to can vacuum hoses be joined is yes, provided the connection matches the hose dimensions, stays airtight and does not create an obstruction where dust can collect. The right adaptor makes a joined hose practical. The wrong one can reduce suction, pull apart during use or make tool changes more awkward than they need to be.

Can vacuum hoses be joined safely?

For normal workshop dust extraction, joining hoses is a common and useful solution. It lets you reach a bench-mounted tool, clean a vehicle, or move around a larger work area without dragging the vacuum unit every few minutes. A proper hose connector is generally more reliable than wrapping two hose ends in tape, and far easier to remove when the setup changes.

The connection must suit the type of vacuum and the material being collected. Fine wood dust, sanding dust and general workshop debris are typical uses. Wet extraction, hot material, chemical residues and potentially combustible dust need a more considered setup. A basic plastic hose adaptor does not change the safety rating of a vacuum or provide static control where that is required.

A longer hose also has a trade-off: every extra metre adds resistance. Most workshop vacuums will tolerate a modest extension, but a long run with several tight bends, reducers and splitters can noticeably reduce pickup at the tool. Make the hose only as long as the job requires.

Start with the hose, not the vacuum brand

Vacuum fittings are often described by brand, but the dimensions and connection style decide whether parts will actually fit. Two hoses can both be sold as 32 mm and still have different cuffs, wall thicknesses or end profiles. Measure the part that will receive the connector before ordering an adaptor.

Measure outside and inside diameter

A spiral hose is normally described using its outside diameter and inside diameter. For example, common workshop hose may be approximately 38 mm outside diameter and 32 mm inside diameter. Those figures matter because one connector may fit over the outside of a hose while another fits inside it.

Use callipers if available, or measure carefully with a ruler across the opening. Measure the plain hose rather than assuming the existing cuff is the hose size. Moulded cuffs are frequently larger than the hose itself and may use a proprietary locking arrangement.

Also check whether the hose end is round, tapered, threaded or fitted with a rotating cuff. A straight hose-to-hose join needs a different part from a connection between a hose and a tool port.

Check which side needs to fit

Adaptor descriptions can seem backwards until you picture the joint. A male adaptor fits inside the receiving opening, such as a machine dust port or the end of a hose. A female adaptor fits outside the part it is joining.

This is why measurements should be taken from the actual connection point. If the adaptor needs to slide into a 32 mm internal opening, you need a male end sized for that opening. If it needs to slide over a 38 mm external hose end, you need a female end sized for that outside diameter. Do not rely on the word “male” or “female” alone.

How to join vacuum hoses with a reliable connector

A dedicated straight hose joiner is the simplest option where both hoses are the same size and have compatible ends. For different sizes, use a reducing or increasing adaptor rather than forcing the larger hose over the smaller one. A forced fit may look secure at first, but it can distort the hose, leak around the joint and become difficult to separate.

Use this process before committing to a setup:

1. Identify the two connection points. Decide whether you are joining bare hose, existing cuffs, or a hose to a machine port. The connector must match both ends, not merely one.
2. Measure each diameter. Record whether each measurement is internal or external. This prevents the common mistake of ordering two male ends or two female ends.
3. Dry-fit the parts. The joint should push together firmly without excessive force. It should not need tape to remain connected during normal movement.
4. Test under working conditions. Run the vacuum, move the hose through its expected range and check for a drop in suction, whistling air leaks or a joint that separates when the hose catches on a bench corner.

If a connector is slightly loose, a hose clip can be appropriate on plain hose, provided it does not crush the hose wall. It is less useful on shaped cuffs or quick-connect systems, where the correct profile matters more than clamping force.

Why an adaptor is better than tape

Tape is tempting because it is close to hand, but it is rarely a good permanent fix. Dust settles at imperfect joints, adhesive residue makes future changes unpleasant, and tape tends to fail after repeated flexing. It also hides whether a connection is actually the right fit.

A correctly sized connector keeps the bore more consistent, which helps airflow. It also gives a repeatable connection that can be removed for storage, transport or switching tools. This matters in a workshop where one vacuum may serve a track saw, mitre saw, router and general clean-up duties.

The adaptor should have a smooth internal passage wherever possible. Sudden steps, narrow restrictions and sharp internal edges create places for shavings and fibrous debris to catch. Fine sanding dust may pass through a poor joint without much complaint, while planer shavings quickly reveal every bottleneck.

Joining AirLock-compatible hoses and standard spiral hose

Quick-connect systems add another consideration: the connection may need to lock as well as fit. DeWalt AirLock-compatible fittings are designed to make a positive connection at the tool end, reducing the chance of a hose coming loose during use. They are useful where tools are moved often or where a loose hose would interrupt cutting.

For an extension, the hose-to-hose section may still use standard spiral vacuum hose dimensions. AirLock-compatible extenders and splitters can connect to common 38 mm outside diameter, 32 mm inside diameter spiral hose used on many workshop vacuum systems. Check both the hose dimensions and the connection style before combining systems, particularly if an existing hose has a proprietary cuff.

A splitter is useful when two tools are permanently positioned near one vacuum, but it is not a free increase in capacity. Opening two branches at once divides available airflow. For dust extraction at a single active tool, close unused branches or use blast gates so suction is directed where it is needed.

Avoid the common causes of poor suction

A joined hose does not normally cause a major performance problem by itself. Most issues come from how the joint has been made. A reducer placed in the wrong direction can create an unnecessary restriction. A connector with a loose fit lets air enter before it reaches the tool. A long hose loop on the floor adds resistance and is more likely to snag.

Keep the route as direct as practical and avoid kinking the hose behind machinery. If the extension is only needed occasionally, disconnect and store it rather than leaving extra hose in the line all the time. This keeps the regular setup shorter and easier to manage.

Do not use a cracked hose, split cuff or badly worn connector as the basis for an extension. The joiner may be correct, but it cannot compensate for a damaged hose end. Cutting back to sound hose can work with plain spiral hose, although doing so may remove a useful cuff and change the fitting required.

When joining hoses is not the right answer

If the vacuum repeatedly trips, overheats or has weak suction even with a short clear hose, the issue is unlikely to be solved by a new connector. Check the filter, collection bin, blockages and the vacuum's condition first. Similarly, if a machine needs a much larger extraction hose than the vacuum can support, an adaptor may physically connect the two but will not make an undersized extractor perform like a dedicated chip collector.

For a fixed machine at the far end of a workshop, rigid ducting or a purpose-designed extraction run may be more suitable than several flexible hose extensions. Flexible hose is convenient, but it creates more airflow resistance than a well-planned larger-bore system.

A good hose joint should disappear into the job: it stays connected, preserves as much airflow as possible and lets you get on with cutting, sanding or cleaning rather than chasing dust around the workshop.
