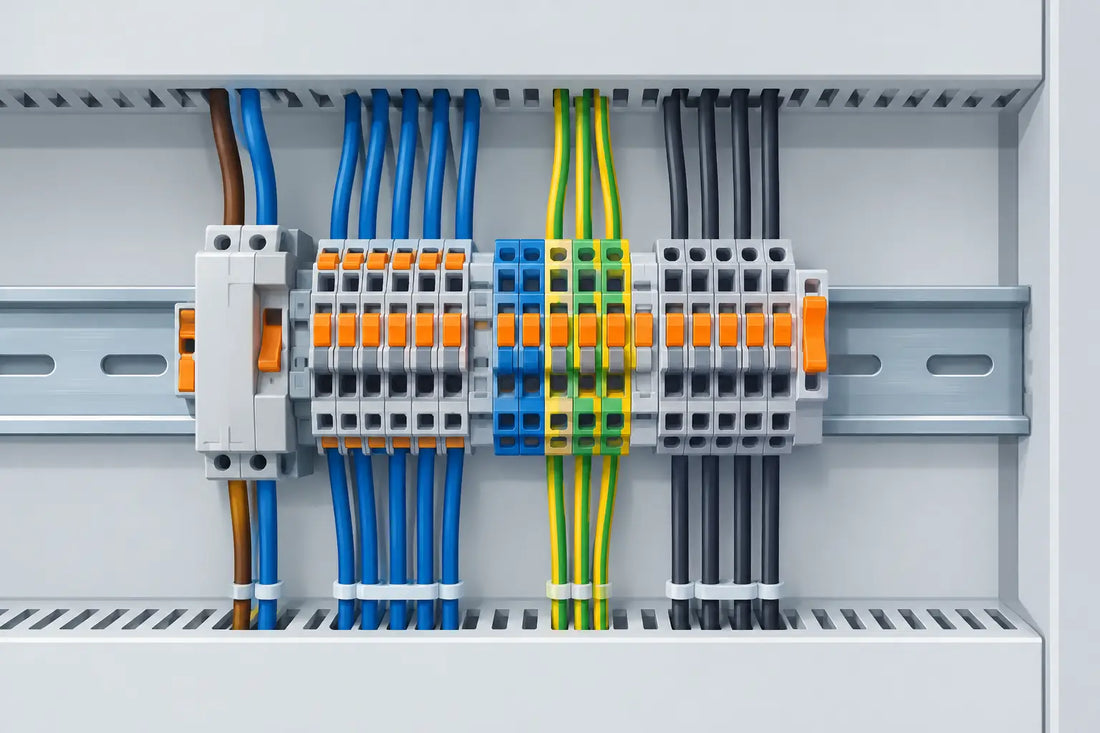

A Wago Panel Example for Tidy DIN Rail Wiring

A useful Wago panel example is not a cabinet packed with components for its own sake. It is a small, clearly laid-out section where field wires enter, connections are supported on DIN rail, and each circuit can be traced without pulling a loose connector from the bottom of an enclosure. For makers, machine repairers and light-control builders, that is usually the difference between wiring that works today and wiring that can still be serviced next year.

This example uses Wago 221 lever connectors mounted on standard 35 mm DIN rail. It is suited to low-voltage distribution, control wiring and signal connections where a compact, accessible termination point is needed. The same layout principles can be scaled up, but the correct connector, enclosure, cable protection and electrical design always depend on the voltage, current, environment and applicable regulations.

What this Wago panel example is designed to solve

Loose lever connectors are convenient during a build. They can also become awkward once the wiring is enclosed. Wires may flex when the door is opened, labels are harder to read, and a future fault check can turn into a search through a bundle of cables.

Mounting connectors on DIN rail gives the wiring a fixed home. Each connector stays in position while a wire is released or tested. The rail also provides a simple layout reference: incoming cables at one side, connectors in the middle, outgoing cables at the other. This is particularly useful in a small control box for a 12 V or 24 V project, an LED installation, a workshop sensor system or a machine modification.

The aim is not to make every project look like an industrial control cabinet. It is to put the parts that need attention in a sensible place. If a connector will never be accessed again and the cable is fully supported, rail mounting may add unnecessary space and cost. Where circuits are likely to be changed, checked or extended, it pays for itself quickly.

The basic layout

Start with an enclosure large enough for the rail, cable entries and bend radius of the wires. A shallow box may accept the components but still make the lid difficult to close once cables are fitted. Leave working room around lever positions so that a wire can be removed without disturbing adjacent connections.

Fit a short length of 35 mm DIN rail horizontally or vertically, depending on the enclosure and cable direction. Horizontal rail often suits cables entering through top and bottom glands. Vertical rail can make more sense in a narrow enclosure. Either arrangement works when the wire paths are clear.

A practical small panel might contain an incoming low-voltage supply, separate positive and negative distribution connectors, and a few output connectors for loads or control devices. Wago 221 connectors are held by DIN rail mounting clips or adaptors sized for the relevant connector body. The adaptor matters: a connector that is merely wedged or tied to rail is not properly supported and makes later servicing harder.

Example arrangement for a 24 V control box

Imagine a 24 V DC supply feeding a small workshop control system with a push button station, an indicator and two low-current actuators. Bring the supply cable into one side of the enclosure through a suitable gland. Terminate the positive conductor in one rail-mounted connector and the negative conductor in a second connector.

From these two distribution points, run individual conductors to each device circuit. Keep positive and negative paths aligned, with consistent wire colours where possible. A simple convention such as red for positive and black or blue for negative makes a panel easier to inspect, but follow the conventions appropriate to the equipment and installation.

If one output needs protection or isolation, place the relevant fuse holder, switch or terminal component between the supply distribution point and that output. Do not use a multi-way connector as a substitute for correctly selected overcurrent protection. A tidy panel does not make an unsuitable circuit safe.

For a signal circuit, use a separate group of connectors rather than mixing it among higher-current supply wires. This improves tracing and can reduce confusion when modifications are made. In noise-sensitive projects, routing and cable type matter as much as connector position, so keep signal wiring away from switching power supplies, motors and other interference sources where practical.

Choosing the right Wago 221 connection

The Wago 221 family includes different conductor positions and versions. Select the connector based on the number of conductors that must join at that point, not simply on what is available in the drawer. A three-way connector is useful for a supply with two branches. A five-way connector can make a compact distribution point, but only when all conductors are intended to be electrically common.

Check that the conductor size, type and strip length are within the connector specification. Lever connectors are valued because they work well with solid, stranded and fine-stranded conductors within their stated range, but that does not remove the need for correct preparation. Strip to the specified length, ensure no bare copper is exposed beyond the entry, close the lever fully and carry out a light pull check.

For the compact Wago 221-2411, use a rail mounting solution made specifically for that model. Connector dimensions and retention features differ between ranges. An adaptor designed for another 221 body may not hold it securely or may obstruct lever access.

Labelling makes the panel serviceable

Labels are often skipped on a one-evening project. They are usually the first thing wished for when a fault appears months later. Label the incoming supply, the connector groups and each outgoing cable where there is any chance of ambiguity.

Short labels such as `24V IN`, `0V COMMON`, `LIGHT`, `SENSOR 1` and `ACTUATOR A` are normally enough. Put the label where it can be read with the enclosure open, not underneath a cable or on a surface hidden by the lid. If several wires leave the panel, add matching cable markers near their destination as well.

A basic wiring note stored with the machine is worthwhile. It does not need to be a formal drawing for a simple build. A clear sketch showing supply polarity, connector positions and device names can save considerable time when a wire is later replaced.

Build sequence that avoids rework

The easiest way to keep the panel neat is to decide the cable routes before terminating anything. Mount the enclosure, gland plate or cable entries, DIN rail and any larger components first. Then offer up representative cables to check that there is enough room to bend them naturally.

Cut wires with a little service allowance, but do not leave large loops simply because there is spare cable. Excess wire occupies enclosure space, hides labels and makes fault finding slower. Where movement or vibration is possible, make sure cables are restrained and that their weight is not carried by the connector.

Terminate the supply side first, then work outward circuit by circuit. Test continuity and polarity as each section is completed rather than waiting until the whole panel is closed. For low-voltage DC work, confirming polarity before connecting sensitive equipment is especially worthwhile.

Keep mains wiring separate from extra-low-voltage wiring, and do not treat a small plastic enclosure as automatically suitable for every application. Mains work, fixed installations and equipment connected to the public supply may require specific protective devices, earthing arrangements, enclosure ratings and inspection. If the requirements are unclear, use a qualified electrician.

Common mistakes in DIN rail Wago layouts

The most common issue is assuming that a lever connector can be used as a general-purpose terminal block for every situation. It is a joining connector, not a complete panel system. It does not provide isolation, circuit protection, earth continuity arrangements or strain relief by itself.

Another mistake is filling every available connector way. A five-way connector with four branches may look efficient, but it can make future tracing harder than two clearly labelled smaller groups. Use the arrangement that makes the electrical function obvious.

Rail ends also deserve attention. If the mounting clips can slide along the DIN rail, use appropriate end stops or position the rail so the connectors cannot drift. Check that all levers remain accessible after neighbouring components and cable ducts are installed.

Finally, avoid relying on colour alone. Colour conventions vary, old equipment gets modified and replacement wires may not match the original. A readable label and a simple wiring record are more dependable than memory.

When rail-mounted connectors are worth using

A rail-mounted Wago layout is most useful where several conductors meet in an enclosure and future access is likely. That includes control panels, machine add-ons, test rigs, lighting controls and workshop power distribution built within the ratings of the chosen components.

For a single in-line repair inside a protected junction box, a mounted solution may be unnecessary. For a larger panel with many circuits, dedicated DIN rail terminal blocks may be more space-efficient and offer better options for bridging, testing and identification. The right choice depends on the number of circuits, how often the wiring will change and the service standard the project needs.

Build the panel so the next person can understand it with the lid open and a basic tester in hand. That person may be you, halfway through a repair months from now.
