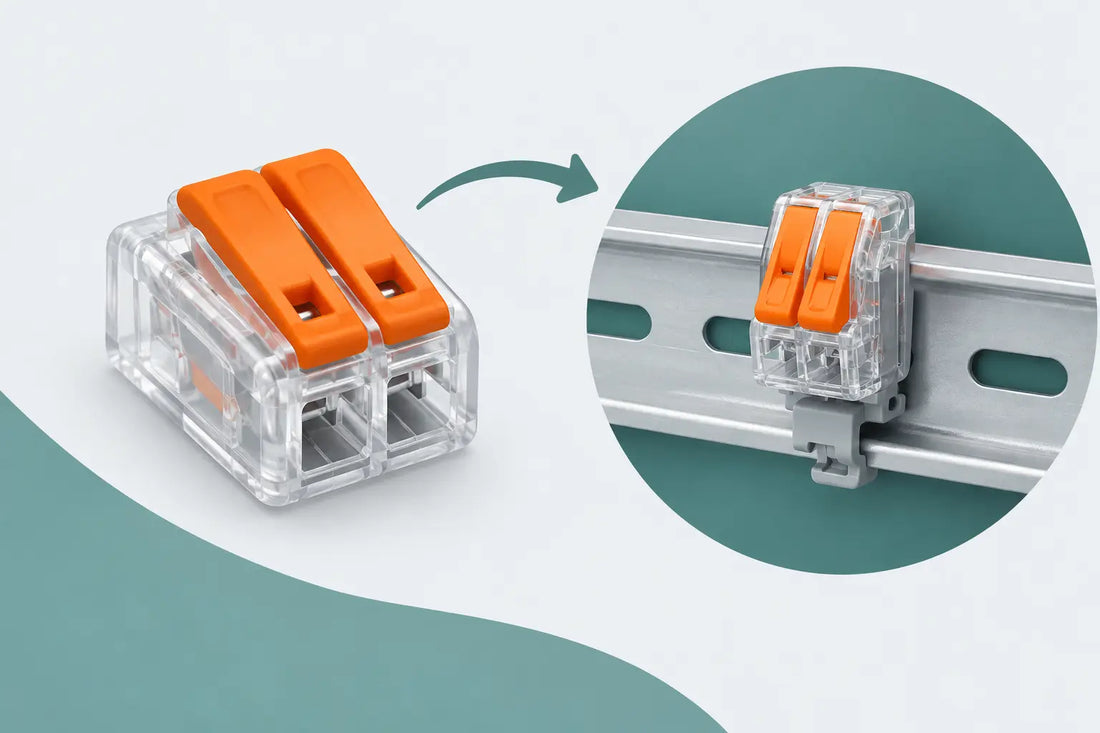

Can a Wago 221 2411 Mount to a 35mm DIN Rail?

If you are searching for an answer to “can Wago 221 2411 mount”, the short answer is yes, but not directly. The Wago 221-2411 inline connector does not have its own DIN rail fixing. To fit it to a standard 35mm DIN rail, it needs a purpose-made mounting adaptor or clip designed for that exact connector body.

That distinction matters. A loose connector may be electrically sound, yet still be a poor fit for a control box, test rig, cabinet or organised workshop installation. A proper rail mount keeps the connection in position, makes cable routing more predictable and leaves the lever accessible when the circuit needs altering or checking.

Can a Wago 221 2411 Mount on DIN Rail?

The 221-2411 can be mounted on a 35mm top-hat DIN rail when it is held by a compatible adaptor. The adaptor clips onto the rail and supports the connector in the correct orientation. It is the adaptor, rather than the Wago connector itself, that provides the DIN rail interface.

This is not interchangeable with every Wago 221 mounting solution. The 221 range includes several connector shapes, including the more familiar compact multi-way lever connectors. An adaptor made for a 221-412, 221-413 or 221-415 should not be assumed to fit a 221-2411. The 221-2411 is an inline connector with a different body shape and cable entry arrangement.

For a reliable installation, choose a holder specifically described as fitting the Wago 221-2411 and 35mm DIN rail. Check whether the holder is intended for the standard 35 x 7.5mm rail profile, deeper 35 x 15mm rail, or both. A clip that is loose on the rail or that does not retain the connector fully defeats the purpose of mounting it.

Why Put an Inline Connector on a DIN Rail?

DIN rail mounting is useful when a connection needs to stay put. It turns a floating inline join into an identifiable part of an organised wiring layout. This is particularly helpful in small enclosures, equipment panels, workshop test setups, low-voltage distribution projects and machine modifications where several connections sit together.

A mounted connector also makes servicing less awkward. Instead of tracing a loose splice through a bundle of cable, you can see where the connection is, release the relevant lever and replace or test a conductor without disturbing the rest of the wiring.

There is a trade-off. DIN rail hardware adds width, height and cost compared with leaving a connector loose inside a suitable enclosure. For one simple connection with plenty of room, mounting may not be necessary. It becomes worthwhile where repeatability, tidiness or future access matters.

It is not a substitute for a suitable enclosure

A DIN rail adaptor provides mechanical retention. It does not automatically make an installation suitable for every environment. Connector location, cable protection, enclosure type, strain relief, heat, moisture, access and the requirements of the circuit still need consideration.

For fixed mains wiring in the UK, work must comply with the applicable electrical safety requirements, including BS 7671 where relevant. If the work is beyond your competence, or forms part of domestic fixed wiring, use a qualified electrician. Do not treat a tidy rail-mounted connection as permission to omit an enclosure, gland, cover or cable restraint that the installation requires.

Choosing the Right 221-2411 DIN Rail Adaptor

The most useful mount is one that solves the practical problem without creating another. Before buying, confirm the connector part number rather than relying on a product photograph. Wago 221 bodies can look similar at a glance, but minor differences in shape stop a generic holder from seating correctly.

A suitable adaptor should retain the 221-2411 firmly enough that normal wire movement does not lift it out, while still allowing the connector to be removed deliberately. It should leave the orange operating levers clear and allow conductors to enter and leave without being sharply bent against the rail or enclosure wall.

Orientation is worth checking as well. On an inline connector, the direction of cable entry affects how neatly the conductors run. In a shallow enclosure, one orientation may keep the wires within the available depth; another may force an unnecessary bend. Plan the cable route before filling an entire rail with clips and connectors.

Maker Fixer offers a dedicated DIN rail mounting option for the 221-2411, intended to address this specific fit issue rather than using a clip made for another member of the 221 family.

How to Mount a Wago 221-2411 Correctly

Start with the rail securely fixed to the backplate or enclosure. Cut the rail cleanly and remove sharp edges, particularly where cables may pass nearby. If several components share the rail, leave enough space for wiring, lever operation and identification.

Clip the adaptor onto the DIN rail first. It should sit squarely and should not rock or slide freely along the rail unless the holder is designed to do so. Where the layout needs the connector to stay in a precise position, DIN rail end stops can prevent a row of mounted parts moving sideways during cable work.

Then press or clip the 221-2411 into its holder according to the adaptor design. Check that the connector is fully seated on all retaining features. Do not force it. If it needs excessive pressure or one end will not locate, stop and confirm that the mount is for the correct connector model.

With the connector mounted, prepare the conductors to the strip length specified by Wago for the 221-2411. Use undamaged wire and a clean, correctly sized strip. Open the lever fully, insert the conductor to the correct depth, close the lever, then carry out a light pull check. This confirms mechanical grip without stressing the connection.

Finally, inspect the completed assembly. The levers should remain accessible, conductor insulation should reach close to the connector body as intended, and the wires should not pull the connector sideways out of its clip. Arrange cables so their own stiffness is not constantly loading the connection.

Common Problems to Avoid

The most common mistake is buying a DIN rail clip for a different 221 connector. A mount that nearly fits is not a fit. It can leave the connector unsupported, obstruct the lever or allow the body to escape when a cable is moved.

Another problem is trying to use the holder as cable strain relief. The adaptor is there to hold the connector to the rail, not to carry the weight of unsupported cable runs. Use suitable cable glands, clips or other restraint where needed, especially in enclosures that may be moved or vibrate.

Avoid packing connectors too tightly together. A dense rail may look efficient, but it can make it difficult to identify conductors, operate levers or remove a connector for fault finding. A little working room is often more valuable than fitting one extra connection into the enclosure.

Also consider whether an inline connector is the best format for the job. The 221-2411 is useful where two conductors need a straight-through connection. Where one feed branches to several outgoing conductors, a multi-way connector or a purpose-built terminal block arrangement may produce a clearer layout.

When Rail Mounting Makes Sense

Mounting a 221-2411 is most useful when the connection is part of a system rather than a one-off join. A bench power distribution project, an LED control enclosure, a machine accessory panel or a repair where wiring must remain accessible can all benefit from a fixed location for each connection.

It is also useful for repeat builds. Once you know the adaptor, rail spacing and cable route work together, you can reproduce the same arrangement on the next enclosure without improvising around loose connectors. That saves time and makes later work easier for whoever opens the box.

A good DIN rail mount should make the connector easier to use, not merely make it look organised. If it holds the correct Wago 221-2411 securely, keeps the levers clear and leaves room for sensible cable routing, it has done the job properly.
