How to Install DIN Rail Connector Holders

Loose lever connectors are quick to use, but they can become difficult to trace once several circuits share an enclosure, control box or workshop panel. When you install DIN rail connector holders, each connector has a fixed position, conductors can be routed more cleanly, and future changes take less guesswork.

This guide covers the practical side of mounting holders for common Wago 221 connectors on standard 35 mm DIN rail. The method is straightforward, but the details matter: the rail profile, connector version, panel space and cable routing all affect the finished result.

Start with the correct holder and rail

The first job is confirming compatibility. A holder made for standard Wago 221 two-, three- or five-way connectors may not fit another connector family, even if the housings look similar. Check the exact connector reference and number of poles before ordering or fitting the holder. This is especially relevant for newer or more specialised connectors such as the 221-2411, which need a holder designed for that specific form.

Most workshop and enclosure installations use 35 mm top-hat DIN rail, often called TS35 rail. The common profile is 35 mm wide and 7.5 mm deep, although a deeper 15 mm version is also available. Many clips will fit both, but do not assume this without checking. If the holder is loose on the rail, or does not fully engage, it can move when connectors are inserted or wires are adjusted.

The rail itself needs to be straight and firmly mounted. Thin rail can flex if it is fixed too far apart, particularly where several conductors pull in one direction. For a small junction box, short rail fixed near each end is usually sufficient. In a larger panel, use enough mounting points to prevent flexing and keep the rail aligned.

Plan the layout before fitting anything

It is tempting to cut a short piece of rail, screw it down and start clipping parts into place. A quick layout check first usually prevents a rebuild later.

Place the connectors, holders and likely cable entries on the bench or against the enclosure back plate. Think about which side each conductor will approach from and whether there is room to operate the Wago levers once the holder is installed. A connector may fit physically in a tight space while still being awkward to wire or inspect.

Leave practical working space around the holder. The connector body needs clearance, but so do the wires. Solid-core conductors can hold a neat route more easily than flexible cable, while stranded conductors may need a wider bend radius and ferrules where the installation or equipment specification requires them. Avoid forcing cable into a sharp turn immediately beside the connector.

Keep circuits grouped logically. For example, place lighting connections together, separate low-voltage wiring from mains wiring where required, and allow a sensible route to glands, trunking or cable ties. DIN rail holders organise the connectors, but they cannot compensate for a layout that sends cables across each other.

Tools and materials for a clean installation

For a typical installation, you need the DIN rail, compatible connector holders, the correct connectors and suitable fixings for the enclosure or mounting surface. A tape measure, marker, drill, screwdriver, wire stripper and side cutters cover most work. A dedicated DIN rail cutter gives the cleanest end, although a hacksaw works well if the rail is secured and the cut edge is deburred.

Choose fixings that suit the surface. Machine screws and nuts are appropriate for many metal enclosures, while screws into a timber backboard need enough length and grip to resist cable movement. If you are mounting inside equipment, make sure screw ends, washers and nuts cannot foul covers, boards or moving parts.

Before working on any electrical wiring, isolate the supply, prove it is dead with appropriate test equipment and follow the requirements that apply to the installation. If the work involves fixed mains wiring, a consumer unit, or a system where you are not competent to verify safe operation, use a qualified electrician.

How to install DIN rail connector holders

1. Measure and cut the rail

Measure the available mounting area, allowing clearance at both ends. Rail end stops are useful where vibration, frequent handling or a vertical mounting position could allow clips to slide. Mark the rail and cut it square. Remove sharp edges with a file or deburring tool, especially around the cut face where a cable could be damaged during later work.

A very short rail section can be useful for a single connector, but it offers less room for adjustment. For multiple holders, make the rail long enough to keep connectors separated and to add an extra holder later if the enclosure has space.

2. Fix the DIN rail securely

Hold the rail in position, mark the mounting holes and fix it to the panel or backboard. Check that it is level if the visual layout matters, but more importantly check that it sits flat and does not twist. Tighten the fixings without distorting the rail.

If the rail has slotted holes, use them to fine-tune its position before fully tightening. In a metal enclosure, remove swarf after drilling. Small metal chips left behind can cause faults where they should not.

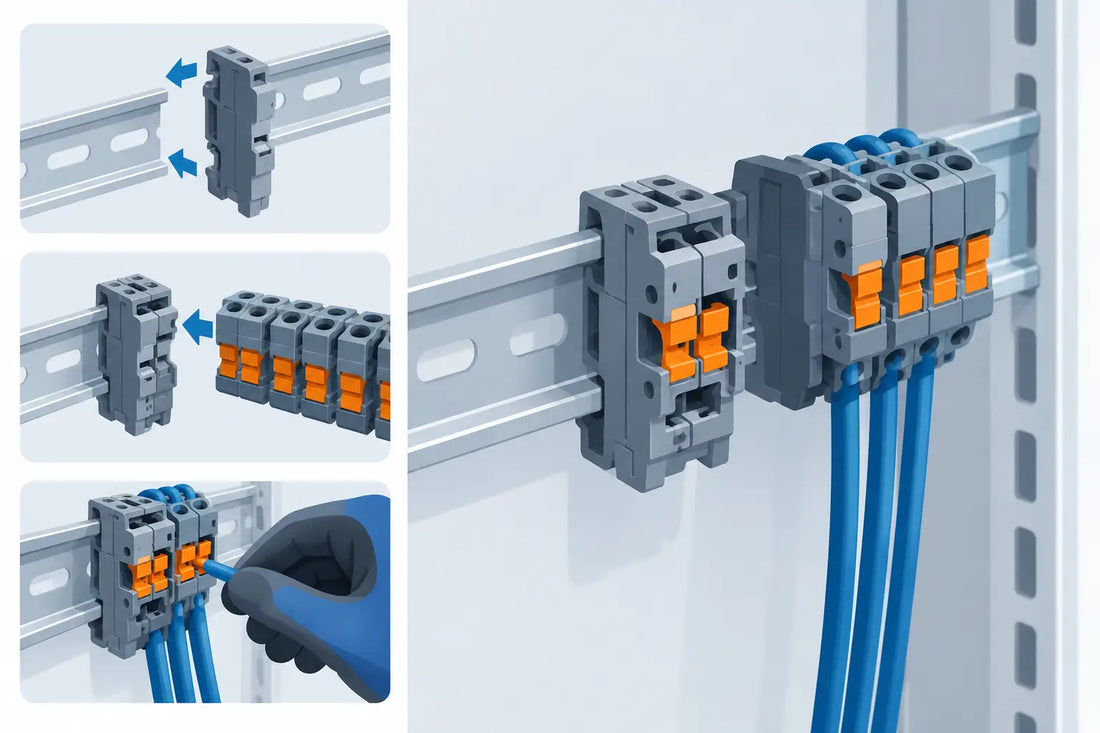

3. Clip the holders onto the rail

Most DIN rail connector holders hook onto one edge of the top-hat profile and press down onto the other edge until they click into place. Fit the holders in the order that suits your cable routing. They can usually be moved along the rail before end stops are fitted.

Give each holder a gentle pull to confirm it has engaged properly. Do not rely on appearance alone. A holder that has only partly clipped on can detach when you push a connector into it.

Where several holders are used, leave a small gap if you need access to release clips or operate connector levers. Packing every holder tightly together may save a few millimetres but can make fault-finding and alterations slower.

4. Insert the connectors and wire them

Push each compatible connector into its holder until it is retained as intended. The connector should sit securely without excessive force. If it rocks, will not seat, or has to be forced, stop and check that the holder matches the connector model.

Prepare conductors to the strip length stated on the connector. Too much exposed copper can create a safety issue, while too little can reduce the connection quality. Insert each conductor fully, close the lever and perform a light pull test. Do not use the holder as a substitute for checking the electrical connection itself.

Route conductors so their natural direction does not pull connectors outwards. Cable ties, trunking and strain relief can help, but do not tighten ties so hard that they deform insulation or make future servicing difficult. Keep identification sleeves or labels visible where practical.

5. Fit end stops and complete the enclosure

Once the holder positions are final, fit DIN rail end stops if needed. End stops are particularly worthwhile on vertical rail, mobile equipment and installations with heavier cable bundles. They prevent gradual movement along the rail and keep the arrangement consistent after service work.

Before closing the enclosure, inspect the whole installation. Check that no conductor is trapped, no copper is visible outside a connector, and covers close without pressing on wiring. Verify that cable entries have suitable protection and that segregation, earthing and circuit protection meet the requirements of the job.

When a DIN rail holder is the right choice

DIN rail holders are useful when connectors need a permanent, orderly home. They work well in small control panels, machine modifications, lighting junction boxes, test rigs and workshop electrical projects. They are also helpful where several connectors must be identified quickly during commissioning or repair.

They are not always necessary. A single connector inside a suitably rated, accessible junction enclosure may not need rail mounting. Likewise, if an installation needs a fully specified terminal block system with marking, bridging, fusing or test points, dedicated DIN rail terminals may be the better option. The holder approach sits between loose connectors and a more complex terminal assembly: it keeps familiar lever connectors organised without adding unnecessary parts.

Common fitting problems

The most common issue is buying a holder for the wrong connector variant. Check the connector body, pole count and product reference rather than relying on a product image. Another frequent problem is mounting rail before considering cable entry positions. This can leave the connector levers facing a wall of wires or put too much bend stress on the conductors.

Loose rail fixings are also easy to overlook. The installation may look tidy when new, then shift as cables are handled. Secure rail, correct holders and sensible cable routing are what make the result durable.

A properly mounted connector is easier to inspect, easier to modify and less likely to become a loose item at the bottom of an enclosure. Take an extra minute to check fit before wiring, and the rail will do the useful job it is meant to do: keeping small connections exactly where you need them.
