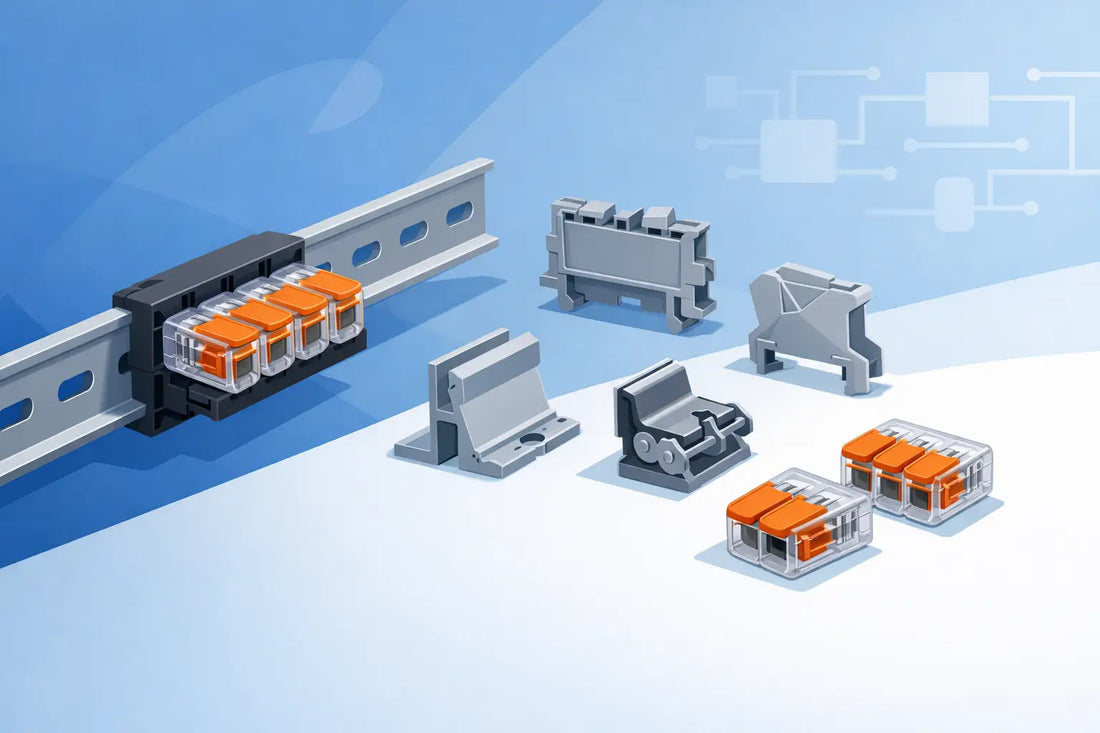

Best DIN Rail Mounting Accessories for Wago 221

A loose Wago connector in the back of an enclosure may work electrically, but it is not a tidy or serviceable installation. The best DIN rail mounting accessories turn common lever connectors into fixed, clearly arranged wiring points that are easier to inspect, alter and trace later.

For workshop control boxes, small automation projects, test rigs and equipment repairs, the accessory is usually a simple part. Its value comes from getting the fit right: the connector must lock into the holder, the holder must grip the rail, and the finished assembly must leave enough room for wire entry and lever access.

What makes a DIN rail accessory worth fitting?

DIN rail is a mounting standard, not a guarantee that every accessory fits every rail or connector. The most common format for this type of work is 35 mm top-hat rail, often called TS35. Before ordering clips or adaptors, check the rail profile as well as its width. A clip made for 35 mm rail will not solve a mounting problem on miniature rail or a different section profile.

A useful mounting accessory should do three jobs. It should retain the connector securely under normal handling and vibration, position it so conductors can enter without sharp bends, and allow removal when the wiring needs changing. A holder that saves a few millimetres but blocks the orange levers is rarely a good choice.

The right option also depends on whether the rail is part of a finished electrical enclosure or a temporary workshop build. In an enclosure, spacing, cable routing, cover clearance and access to terminals matter most. On a bench fixture, fast connector changes and a clear layout may matter more.

Best DIN rail mounting accessories by application

Wago 221 clips for 35 mm DIN rail

For the common Wago 221 lever connector range, a purpose-made 35 mm DIN rail clip is usually the cleanest answer. It gives the connector a fixed home without changing the connector itself. This is useful where a group of joins needs to stay organised rather than moving around in an enclosure.

The main benefit is repeatability. Each connector sits in the same orientation, so wiring routes can be planned before final termination. This is particularly helpful in compact boxes containing power supplies, switches, relays or low-voltage controls.

Check which 221 housing sizes the clip accepts. The 221 family includes connectors with different numbers of ports, and a holder designed around one body shape may not accept another. Do not assume that a clip for a three-way connector will suit a larger multi-way version simply because both carry the 221 name.

For most maker and repair jobs, individual clips are more flexible than a moulded multi-connector carrier. You can place them where the wires naturally fall, leave room around a larger connector, or add another clip later without rebuilding the layout.

Mounts for Wago 221-2411 connectors

The Wago 221-2411 has a different form factor from the standard lever connectors. It needs an accessory made specifically for that connector rather than a general 221 clip. This is a good example of why exact compatibility matters more than a generic description such as “Wago DIN rail mount”.

A dedicated 221-2411 rail mount keeps the connector accessible while preventing it from hanging on its conductors. That matters when the connector is used in a compact control or junction arrangement where a pull on the cable could otherwise move the whole connection point.

When choosing a mount for this connector, look at the wire approach from both sides. A holder may fit the rail perfectly yet create an awkward route if the enclosure gland, trunking or adjacent component sits too close. It is often worth placing the rail and components on the backplate first, then checking the intended cable paths before drilling or final wiring.

End stops for a fixed rail layout

End stops are not glamorous, but they are among the most useful DIN rail accessories where clips, terminal blocks or small modules sit in a row. They prevent components from creeping sideways when wires are inserted or removed, and they keep a carefully spaced layout from becoming untidy over time.

Use them at the ends of a populated section of rail. They are especially worthwhile on vertical rails, portable equipment and enclosures that may be moved or vibrated. If you need to leave a deliberate gap around a connector for wire bend radius, an end stop can also define that space.

The trade-off is service access. A fully trapped row may require removing an end stop before a central item can be repositioned. For a stable finished panel that is normally acceptable. For a prototype that changes every week, leave enough room to work or use short rail sections for separate functions.

Rail sections, brackets and spacers

A DIN rail clip is only as useful as the rail it sits on. For a small project, a short length of 35 mm rail mounted directly to a backboard or enclosure can turn a loose wiring area into a serviceable section. Choose a rail length that allows for the mounted connectors, end stops and a little spare capacity. Filling every millimetre makes later changes harder than they need to be.

Brackets and stand-offs are useful where the rail needs to clear an uneven surface, avoid screw heads or align with cable trunking. Spacers can also help maintain clearance behind wiring in shallow enclosures. These parts solve physical layout issues, not electrical ones, so measure the installed depth with connector, wire and cover all considered together.

If the rail is cut to length, remove sharp edges before fitting it. A burr can catch fingers, damage insulation or stop an end stop from seating properly. It is a small preparation step that avoids avoidable trouble later.

How to check fit before you buy

Start with the connector part number, not just the brand. Wago makes several connector styles, and similarly shaped products can have different retention features. Then confirm the rail specification, normally 35 mm top-hat rail for the clips used with common Wago 221 connectors.

Next, measure the available depth inside the enclosure. Include the connector body, the space needed to operate its levers, and the bend radius of the conductors. Thin flexible wire can turn tightly; larger conductors and ferruled cable need more room. An arrangement that looks fine from the front can fail when the lid is offered up.

Consider orientation before fitting the rail. Position the connectors so the lever and wire entry remain visible and reachable. In many boxes, horizontal rail gives a neater route into side cable glands, while vertical rail may make better use of a narrow space. There is no single correct orientation - the cable route decides it.

Finally, think about identification. If more than one circuit uses similar connectors, leave space for labels on the enclosure, backplate or adjacent trunking. DIN rail mounting improves order, but it does not replace clear marking or proper documentation.

Installation points that prevent common problems

Fit the DIN rail firmly to a suitable surface with evenly spaced fixings. A rail that flexes when you press a connector into its clip can loosen over time or make wiring awkward. Check that the clip engages fully rather than merely resting on the rail lip.

Install and arrange the empty mounts before terminating conductors where possible. You can then confirm access, move individual clips and add end stops without pulling on completed wiring. Once the layout is right, terminate the conductors to the connector manufacturer's strip-length and conductor requirements.

Avoid using a rail clip as strain relief. The clip retains the connector, but cables entering an enclosure still need suitable glands, clamps or other methods appropriate to the installation. Keep mains and low-voltage wiring separated where required, follow applicable regulations, and use an appropriately qualified electrician for work outside your competence.

Maker Fixer DIN rail adaptors are aimed at this practical problem: mounting compatible Wago connectors on 35 mm rail without relying on improvised brackets, adhesive pads or cable ties. The right clip is a small component, but it makes the finished job easier to inspect and easier to modify.

A clean rail layout should leave room for the next repair, the next cable and the next person who opens the enclosure. Choose the accessory by connector model and rail profile first, then let access and cable routing decide the final arrangement.
