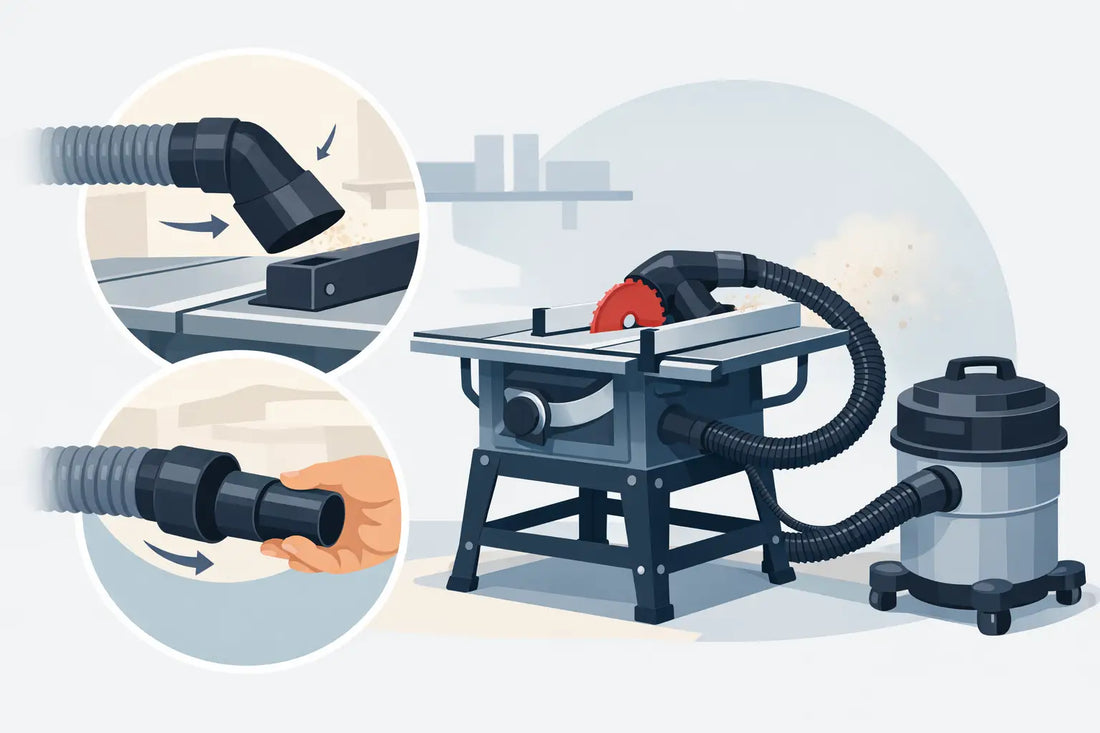

Dust Extraction Adapter Table Saw Fit Guide

Fine dust from a table saw gets everywhere fast. It builds up under the throat plate, packs into the cabinet, coats the floor around the stand, and ends up in the air you are breathing. A good dust extraction adaptor table saw setup fixes more than mess - it improves visibility at the cut, reduces clean-up time, and helps your extractor actually pull waste from the places that matter.

Why table saw dust extraction is often awkward

Table saws are not consistent about extraction ports. One model might have a 63 mm outlet on the cabinet, another a 2.5 inch port, and another an odd stepped fitting that never quite grips a standard hose properly. Portable and jobsite saws add another complication because they often prioritise compact design over airflow. The result is a lot of sawdust escaping from gaps around the blade, motor housing and lower shroud.

That is why adaptors matter. In many workshops, the extractor and hose are not the problem. The weak point is the connection between the hose and the saw. If that fit is loose, undersized, oversized or badly stepped, airflow drops and the hose can pull free during use.

A proper adaptor is doing a simple but important job. It matches one diameter to another, but it also creates a more reliable seal, reduces wobble at the port and helps maintain usable suction where generic push-fit solutions fall short.

What a dust extraction adaptor table saw connection needs to do

A table saw adaptor does not need to be complicated, but it does need to suit the setup. The right part depends on three things - the saw port size, the hose end size, and the type of extraction you are using.

If you are connecting a workshop vacuum to a compact saw, you usually need a tighter, smaller-diameter connection that keeps air velocity high. If you are connecting a larger dust extractor to a cabinet saw, the focus shifts towards moving higher volume through a wider hose. Those are not the same job, and one adaptor will not suit both equally well.

Fit also matters more than people expect. A slightly loose adaptor can leak enough air to make extraction noticeably worse. A fitting that is too tight can crack a plastic port over time, especially on portable saws that get moved around or loaded into a van.

Measure first, buy second

Before choosing an adaptor, measure both ends properly. Do not rely on a stated nominal size unless you have checked it against the actual part in front of you. Tool ports and hose cuffs are often described in rounded dimensions, and that can be enough to cause a mismatch.

Check inner and outer diameter

Some adaptors fit over a port. Others fit inside it. That means the critical measurement could be the outer diameter of the saw outlet, or the inner diameter, depending on the adaptor style. The same applies at the hose end.

Use callipers if you have them. If not, a steel rule is better than guessing. Measure the outside of the saw port, then the inside if possible, and do the same for the hose cuff or connector. A few millimetres either way can decide whether a friction fit works or fails.

Look at the shape, not just the size

Not every port is truly round. Some are tapered. Some are slightly oval from moulding. Some have ribs, clips or locking tabs. If your table saw uses a branded hose retention system, the adaptor may need to account for that rather than just matching diameter.

This is where exact-fit accessories earn their keep. A generic rubber sleeve can work in some cases, but it is rarely the cleanest solution when the port has any special geometry.

Common table saw extraction setups

A lot depends on the saw itself. Portable saws, site saws and cabinet saws handle dust very differently.

Portable and jobsite saws

These usually have a single rear dust port, often in a smaller size intended for a vacuum hose. They can collect reasonably well below the table, but fine dust still escapes from above the blade unless the guard has extraction as well. On this type of saw, a snug adaptor to a vacuum hose often gives the best result because high air speed helps pull debris through a relatively restricted housing.

The trade-off is noise and bin capacity. A vacuum is practical and compact, but if you are ripping sheet goods or long runs of timber, it fills quickly.

Contractor and hybrid saws

These tend to be less sealed underneath than cabinet saws, so extraction performance depends heavily on whether the base is enclosed and how much air leakage is around the trunnions and motor area. A wider hose may improve volume, but only if the machine housing can direct waste towards the port rather than bleeding air from every gap.

With these saws, the adaptor is part of a bigger system. It helps, but it cannot fully compensate for an open stand or poor internal shrouding.

Cabinet saws

Cabinet saws usually benefit most from larger-diameter extraction because they are designed around greater airflow. Some also include an overarm guard extraction point, which creates a two-port setup - one below the table for bulk waste and one above for airborne fine dust.

Here the question is less about whether you need an adaptor and more about how to adapt without choking the system. Reducing a large cabinet port down to a small vac hose can work for light use, but it limits what the machine was designed to do.

Where adaptor choice affects performance

People often treat adaptors as passive connectors, but they can improve or harm extraction depending on how they are designed.

Sudden reductions can restrict airflow

If you step down too aggressively from a large saw outlet to a narrow hose, resistance increases and chip transport can suffer. Fine dust may still move, but larger waste can stall or settle in the line. A gradual reduction is usually better than a sharp one.

Poor seals waste suction

Even a powerful extractor loses effectiveness if the connection leaks at the saw port or hose cuff. This is especially noticeable on smaller vacuums, where every bit of suction matters. A well-matched adaptor with a secure friction fit or compatible locking interface is better than wrapping tape around a near miss.

Unsupported hoses strain the port

A heavy hose hanging off the back of a portable saw can twist the outlet and loosen the fit over time. In that case, the right adaptor may need to be paired with hose support or a more flexible cuff. The strongest fit is not always the best if it transfers too much leverage into a thin plastic outlet.

When a universal adaptor is enough

Universal adaptors have their place. If the saw port is a simple round outlet and the hose difference is small, a stepped or flexible adaptor can solve the problem quickly. They are useful in mixed workshops where one extractor is shared across several tools.

The downside is precision. Universal parts are built to cover a range, not one exact interface. That usually means compromise in wall thickness, taper, or how far the hose seats. For occasional use that may be perfectly acceptable. For daily use, an exact-fit solution is usually neater and more reliable.

Signs you have the wrong adaptor

If the hose slips off during cutting, the fit is wrong. If the adaptor only works with tape, the fit is wrong. If the saw still dumps most of its waste under the stand despite a decent extractor, the adaptor may not be the only problem, but it is still worth checking whether the connection is leaking or restricting flow.

Another common sign is clogging near the outlet. That can mean the reduction is too abrupt, the hose diameter is too small for the material load, or the extractor simply is not matched to the saw. It is rarely solved by brute force suction alone.

Choosing a setup that matches the way you work

For a small workshop using a portable table saw, the practical target is usually a secure hose connection, decent extraction from the lower port, and minimal fuss when moving the saw. In that case, a compact adaptor that fits cleanly to a workshop vacuum makes sense.

For a more permanent woodworking setup, it is often worth treating the saw as part of a wider extraction system. That means choosing an adaptor that preserves hose diameter where possible and avoids improvised connections that leak or collapse.

This is where specialist parts make life easier. Maker Fixer focuses on the awkward compatibility problems that standard accessories tend to ignore, particularly where exact fit matters more than generic flexibility.

A table saw will never be a perfectly clean machine, especially if blade guard extraction is absent. But a well-chosen adaptor removes one of the most common weak points in the system. Measure carefully, match the port properly, and let the extractor work with the saw rather than against it. That small fix usually pays back every time you make a cut.
