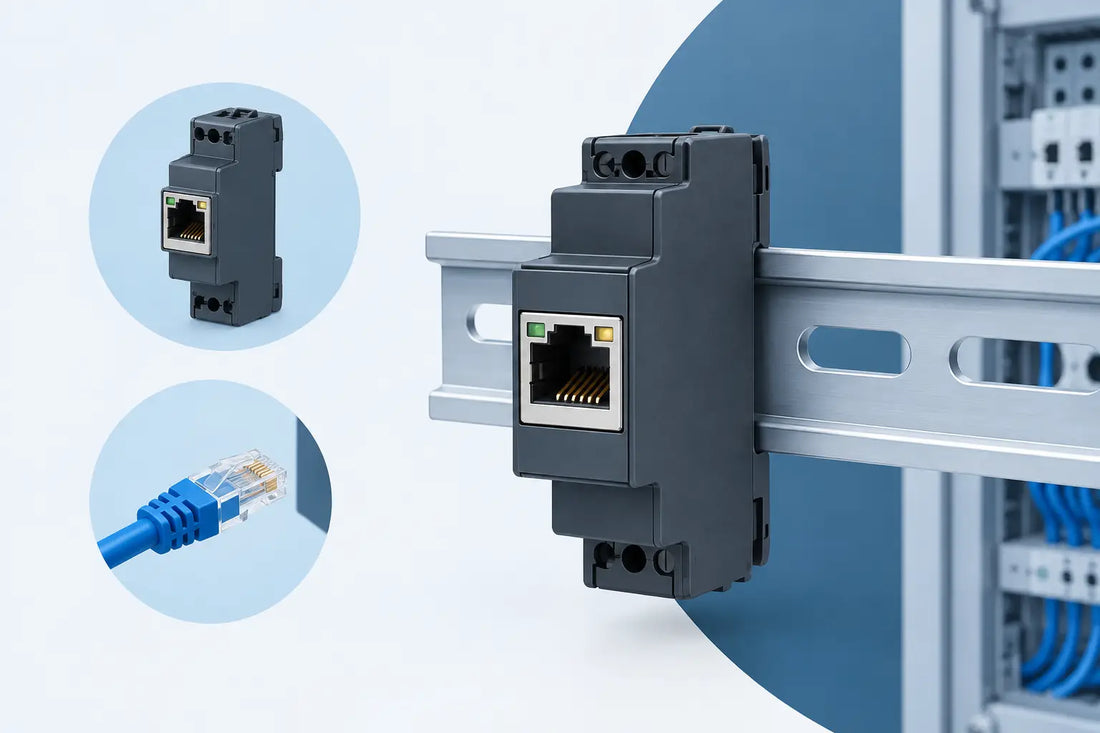

DIN Rail Adaptor for RJ45 Modular Jack Use

An RJ45 connection fitted loose inside a control enclosure soon becomes a nuisance. The cable pulls against the termination, the port is hard to find, and a simple network connection can look like an afterthought. A DIN rail adaptor for RJ45 modular jack gives the connection a fixed, serviceable position alongside terminal blocks, relays and power supplies.

The job sounds simple, but the right result depends on more than whether the adaptor clips onto a 35 mm rail. RJ45 jacks come in several body shapes, DIN enclosures have limited depth, and Ethernet cable needs room to bend without loading the jack. Getting those details right produces a cleaner installation that is easier to test, label and maintain.

What a DIN Rail Adaptor for RJ45 Modular Jack Does

A DIN rail adaptor is a mechanical mount that holds a compatible RJ45 modular jack on standard 35 mm DIN rail. It turns a loose data outlet into a defined connection point within a cabinet, workshop panel or equipment enclosure.

In most cases, the adaptor does not make the electrical connection itself. The RJ45 jack still handles the network termination, while the adaptor provides retention and positioning. That distinction matters when selecting parts. A DIN rail mounting adaptor cannot correct a poorly terminated cable, replace shielding requirements or turn a basic jack into a higher-category data component.

The arrangement is useful where a network cable needs to enter a DIN rail-based build and remain accessible. Typical examples include a small PLC cabinet, a home automation panel, a test rig, a machine control box or a workshop network distribution enclosure. It can also provide a sensible interface between fixed cabinet wiring and a removable patch lead.

Start With the Jack, Not the Rail

The rail side is usually straightforward. Standard top-hat DIN rail is commonly 35 mm wide, but the RJ45 jack is the variable that decides whether the assembly fits correctly.

“RJ45 modular jack” describes the connector format, not one universal housing. One jack may be a keystone-style insert with a defined front flange. Another may be a PCB-mounted socket, a panel-mount coupler, or a shielded industrial connector with a larger body. They all use an eight-position modular interface, but they are not interchangeable from a mounting point of view.

Before choosing an adaptor, check how the jack is retained. A keystone-format jack normally clicks into a matching aperture through spring tabs. An adaptor designed for that format needs the correct opening and enough material around it to hold the jack securely. A panel-mount feed-through may need a nut, screws or a shaped cut-out instead.

Measure the jack body as well as the visible front. Its width, height and depth determine whether it clears nearby components and the enclosure door. Pay particular attention to the rear termination area. Toolless jacks, punch-down jacks and couplers each take up space differently behind the mounting face.

Keystone jacks and feed-through couplers

A keystone jack is often the tidy choice when terminating fixed solid-core cable inside a panel. It allows the permanent cable to be terminated at the rear and a standard patch lead to plug into the front. If the jack is rated for the intended network category and installed correctly, it keeps the transition clear and replaceable.

A female-to-female feed-through coupler serves a different purpose. It joins two patch leads or provides a pass-through point where the cable is already terminated. This can be useful for test equipment or temporary setups, though it adds another connection in the channel. For higher-speed networks, use a coupler specified for the category you need rather than assuming every RJ45 coupler performs the same.

Check Cable Direction and Bend Radius

The best DIN rail position is not always the most obvious one. An RJ45 plug needs space in front of the jack for the latch and boot, while the rear cable needs a gradual route away from the termination. A compact enclosure can become awkward if the jack faces directly into a door or the cable is forced into a sharp turn.

Allow room for the actual plug you will use. Moulded patch leads with large strain-relief boots take more clearance than slim patch leads. If the port will be used regularly, make sure a hand can release the latch without disturbing adjacent wiring.

At the rear, avoid crushing or tightly folding Ethernet cable. Excessive bend can affect performance and puts repeated strain on the conductor pairs. The exact minimum bend radius depends on cable construction, particularly whether it is solid or stranded and whether it has screening, but leaving a comfortable loop is generally better than trying to make the run look perfectly square.

Cable routing also affects service work. A jack mounted at the edge of a crowded rail may look accessible until a power supply or terminal block has to be removed. Leave a route that lets the cable be traced and disconnected without dismantling half the enclosure.

Consider Screening and Electrical Separation

Network cables often share enclosures with control wiring, switching power supplies, contactors and motor-related equipment. That is where cable choice, screening and physical separation become practical rather than theoretical concerns.

For a basic low-noise cabinet, an unscreened RJ45 jack and suitable UTP cable may be enough. In electrically noisy environments, screened cable and compatible shielded components may be the better route. Screening only works as intended when the whole arrangement is considered: cable, jack, patch lead, enclosure bonding and grounding approach all need to suit the installation.

Do not assume a metal-looking RJ45 shell automatically gives useful screening. Nor should a screened cable be treated as a cure for poor cable routing. Keep data wiring away from mains conductors and high-current switching paths where practical. If the application has safety, machinery or installation requirements, follow the relevant standards and use a qualified electrician or controls professional where needed.

A DIN rail adaptor also needs to sit securely beside other parts. It should not interfere with terminal covers, restrict ventilation around power supplies or create a point where patch leads can snag during normal access.

Plan the Rail Layout Before Fitting

It is tempting to treat the network port as the final detail in an enclosure build. In practice, its location should be decided when the rail layout is planned. The front of the port should be visible, the cable entry should make sense, and the label should remain readable with the enclosure open.

A useful approach is to place network interfaces near the cable-entry side or near the equipment they serve, while keeping them separated from mains distribution. That reduces cable crossings and makes fault-finding quicker. If several Ethernet connections are needed, use a consistent orientation and label both the port and the remote end of each cable.

Think about replacement too. DIN rail mounting is valued because components can be moved or removed without remaking the whole panel. Do not defeat that advantage by fitting the adaptor behind fixed wiring bundles or using cable ties that prevent access to the release clip.

Fitting the Adaptor and Jack

With compatible parts selected, fitting is usually quick. Clip the adaptor onto the DIN rail and check that it sits flat and does not slide excessively. Insert the RJ45 jack according to its retaining method, then confirm that the front face is held firmly and that the jack cannot be pushed through the opening when a plug is inserted.

Terminate or connect the rear cable using the jack manufacturer's wiring scheme. For fixed Ethernet installations, keep pair twists as close to the termination as the connector instructions allow. Splitting and straightening pairs too far back is a common way to reduce the quality of an otherwise neat installation.

Once connected, plug in the intended patch lead and check the cable route with the enclosure door closed. This simple final check catches many problems: a plug boot fouling the door, a cable pressed against a sharp edge, or a patch lead that needs to exit in a different direction.

Test the connection after assembly. A basic cable tester can identify continuity and pair-order faults. For installations where link speed and cable certification matter, use suitable test equipment for the network category and application. A link that shows continuity is not automatically proof of full performance at higher data rates.

Common Selection Mistakes

The most frequent mistake is buying by connector name alone. “RJ45” tells you the plug interface but says little about the jack housing or the required mounting aperture. Confirm the mechanical format before ordering.

Another is overlooking enclosure depth. A shallow DIN enclosure may accept the adaptor at the front yet leave no room for a terminated jack and cable behind it. Check dimensions from the rail mounting point through to the rear cable exit, not just the depth of the adaptor body.

Finally, avoid treating a network port as an unlabelled convenience socket. In a workshop or control panel, clear labelling saves time later. Mark whether the port goes to a router, switch, PLC, access point or test device, and label the matching cable at the other end.

A well-chosen DIN rail adaptor makes an RJ45 modular jack part of the installation rather than a cable left to manage itself. Match the adaptor to the jack geometry, allow space for the cable, and place it where future access will still be straightforward. That is usually the difference between a connection that merely works and one that stays useful after the next alteration.
