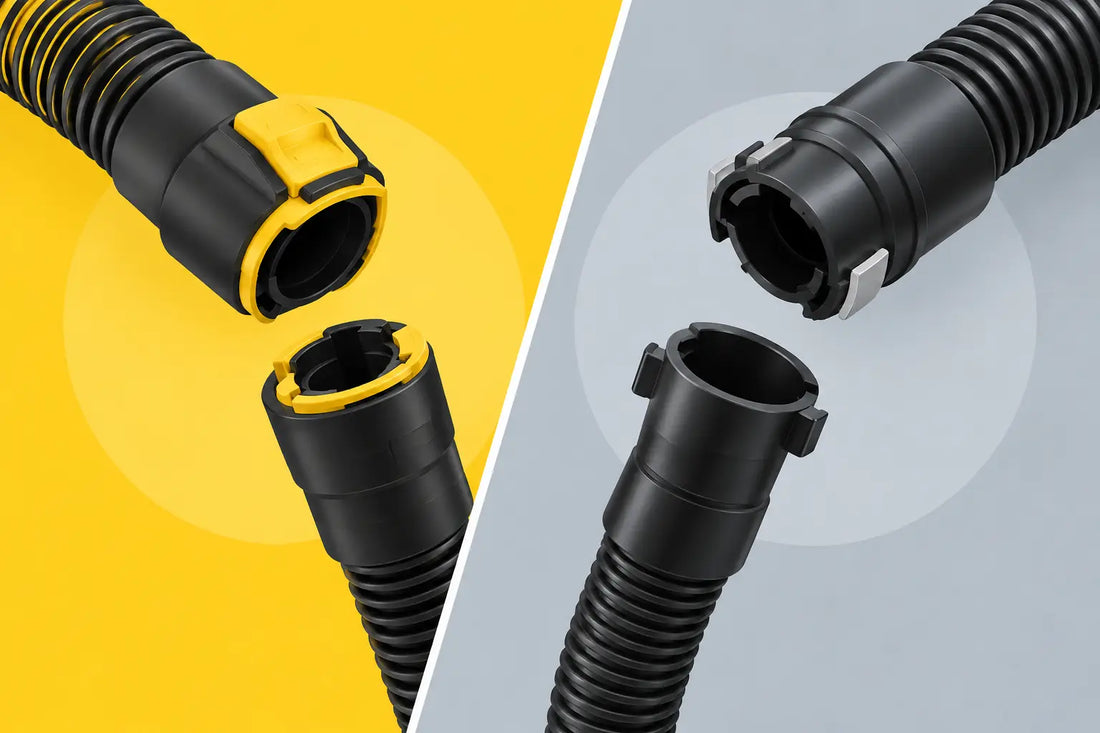

DeWalt AirLock versus Bayonet Fittings Compared

A dust hose connection only needs to be a few millimetres wrong to become a workshop nuisance. It can pull loose mid-cut, leak fine dust, snag on the bench or refuse to fit at all. When comparing DeWalt AirLock versus bayonet fittings, the useful question is not which system sounds better. It is which connection matches the tool, hose and working pattern you actually have.

DeWalt AirLock versus bayonet fittings: the basic difference

DeWalt AirLock is a proprietary dust-extraction connection system designed to give compatible tools and hoses a positive, secure join. It is commonly associated with the DWV9000 connector and compatible accessories. The aim is straightforward: connect the hose, engage the locking mechanism and reduce the chance of the hose coming off while the tool is in use.

A bayonet fitting is a more general mechanical arrangement. A male end with lugs enters matching slots in a female socket, then turns to lock. The principle is familiar from many vacuum, power-tool and industrial connections. However, “bayonet” describes the locking method, not one universal size or standard.

That distinction matters. Two fittings can both use a twist-to-lock action and still be completely incompatible. Lug position, socket depth, diameter, taper and seal location all vary. A bayonet connector from one vacuum brand should never be assumed to fit a DeWalt AirLock tool or DWV9000-style adaptor.

AirLock is a system, not just a shape

The practical advantage of AirLock is consistency within its intended ecosystem. A compatible connector is made to engage with an AirLock-compatible tool port in a defined way. This makes it useful where a hose is moved repeatedly between a mitre saw, sander, planer or handheld power tool and needs to stay connected under normal workshop movement.

The lock also gives a clear indication that the connection has engaged. That is helpful when working around machinery where a hose may be tugged by a moving tool, caught on an offcut or dragged across the floor. A plain friction-fit adaptor can work perfectly well, but it relies on a tight push fit rather than a deliberate lock.

AirLock compatibility does not mean every part of the dust-extraction setup is automatically standardised. The machine-side port may be AirLock compatible, while the hose behind the connector uses a different internal or external diameter. This is where the right adaptor matters.

Bayonet fittings depend on the exact pattern

Bayonet fittings can be quick, compact and secure. They are particularly useful on equipment built around one established hose system. Once the correct pair is matched, the connection usually needs only a short push and turn.

The limitation is that bayonet fittings are often brand-specific or range-specific. Even when the diameter looks close, a connector may stop short, turn without locking or sit loose enough to lose suction. For dust extraction, an almost-fitting connection is rarely good enough. Air leaks reduce pickup at the tool, and a loose joint can separate just when fine dust is being produced.

If your machine already has a genuine bayonet inlet and you have the matching hose, retaining that system is normally the simplest route. If you are joining a non-DeWalt machine or a standard vacuum hose to an AirLock-compatible connector, an adaptor is usually the cleaner answer than trying to force one fitting type into another.

How the connection affects everyday dust extraction

A secure lock is useful, but connection choice should also account for hose handling, airflow and how often the setup changes. There is no benefit in fitting a locking connector if the rest of the arrangement is too narrow, too heavy or awkward to remove.

Retention and hose movement

AirLock is generally the better choice when hose retention is the priority. On tools that move around the workshop, such as track saws, routers and orbital sanders, repeated pulling forces can work a friction-fit hose loose. A compatible locking connection gives more confidence that the hose will remain attached.

A correctly matched bayonet fitting can provide similar retention. The difference is availability and compatibility. If the tool is designed for a particular bayonet system, use its correct mating connector. If it is not, adapting to AirLock may be more practical where the rest of the workshop already uses DeWalt-style connections.

Neither type removes the need for sensible hose routing. A locked hose can still create a problem if it is stretched tight across a cut line or catches the edge of a bench. Leave enough hose movement for the task and support heavier hose sections where possible.

Airflow and leakage

The fitting itself does not create suction. Your extractor, hose diameter, tool port and filter condition do that. What the fitting can do is preserve airflow by minimising leaks and unnecessary restrictions.

A well-sized adaptor should make a close, stable connection without reducing the bore more than necessary. This is especially relevant with fine-dust tools such as sanders. Small leaks near the tool can noticeably reduce collection because air is drawn in through the gap instead of through the dust shroud.

Avoid judging fit by the outside appearance alone. A connector with a large outside diameter may have a smaller internal passage, and a hose that fits over an adaptor may still create a step or restriction inside. For general chip collection, a modest restriction may be acceptable. For sanding dust, where airflow is already working through a smaller port, it is worth keeping the path as open as the tool allows.

Speed when changing tools

Bayonet fittings and AirLock fittings are both quicker to use than taped joints or improvised sleeves. AirLock has an advantage in a mixed tool setup when several tools have compatible ports and one hose needs to move between them. The locking action is repeatable and the connection is familiar each time.

For a fixed machine, speed may matter less. A benchtop saw or stationary sander can work well with a plain, well-matched push-fit adaptor if it is rarely disconnected. In that case, prioritise a good seal, sensible hose diameter and an adaptor that does not protrude into the work area.

Choosing an adaptor between hose and tool

Most dust-extraction problems are measurement problems. Before choosing between an AirLock-compatible adaptor and a bayonet solution, identify what needs to connect at both ends.

Measure the machine port where the adaptor will sit, not the dust outlet's widest surrounding moulding. Then establish whether the adaptor needs to fit inside the port or outside it. A male adaptor is intended to enter a machine port or hose. A female adaptor fits over the outside of a machine outlet.

For a reliable choice, check these four points:

1. Measure the relevant internal diameter for a male connection, or external diameter for a female connection.
2. Confirm whether the tool has an AirLock-compatible port, a true bayonet socket or a plain round outlet.
3. Check the hose dimensions separately, including its internal diameter and the outside diameter of any cuff.
4. Allow for tapers, ribs and flexible rubber sections that can affect the actual seating depth.

Many workshop vacuum hoses are based around a 38 mm outside diameter and 32 mm internal diameter spiral hose format. That does not guarantee that every 38 mm-labelled accessory will mate directly, because cuffs and tool ports vary. It does provide a useful starting point when choosing a hose extender, splitter or machine adaptor.

If you are fitting an AirLock-compatible connector to standard spiral vacuum hose, make sure the rear connection suits the hose itself rather than only the tool end. A good tool-side lock is wasted if the hose-side connection is loose. For a multi-tool setup, an AirLock-compatible hose extender or splitter can also reduce repeated swapping, provided the extractor has enough airflow for the branch arrangement being used.

When each fitting is the sensible choice

Choose an AirLock-compatible connection when you have a DeWalt AirLock tool, a DWV9000-style connector or a workshop where secure, repeatable changes between compatible tools are needed. It is particularly useful for portable tools and tasks where the hose gets moved frequently.

Choose a bayonet fitting when the machine and hose already share the same verified bayonet pattern. Do not replace a working matched system simply because another connector is more common. The correct fitting is the one that locks properly, seals well and does not restrict the extraction path.

Choose a purpose-made adaptor when joining unlike systems. This is often the realistic answer for older tools, non-standard ports and mixed-brand workshops. Maker Fixer adaptor options are available in male and female formats so the fitting can match whether it needs to go inside a port or over the outside of one.

Avoid relying on force, tape or a connector that only catches on one edge. Those approaches may hold briefly, but they can damage plastic ports, create leaks and turn a simple hose change into a recurring interruption. A measured adaptor is usually cheaper than the time spent correcting a poor connection.

Before buying the next dust accessory, place the tool, hose and intended connector together on the bench and measure each interface. That small check is often what turns a collection system from something you tolerate into one that stays connected and gets used.
